KIT HYDROFOIL SABFOIL KIT 91 - 590 IKA WORLD SAILING YOUTH FOIL CLASS U

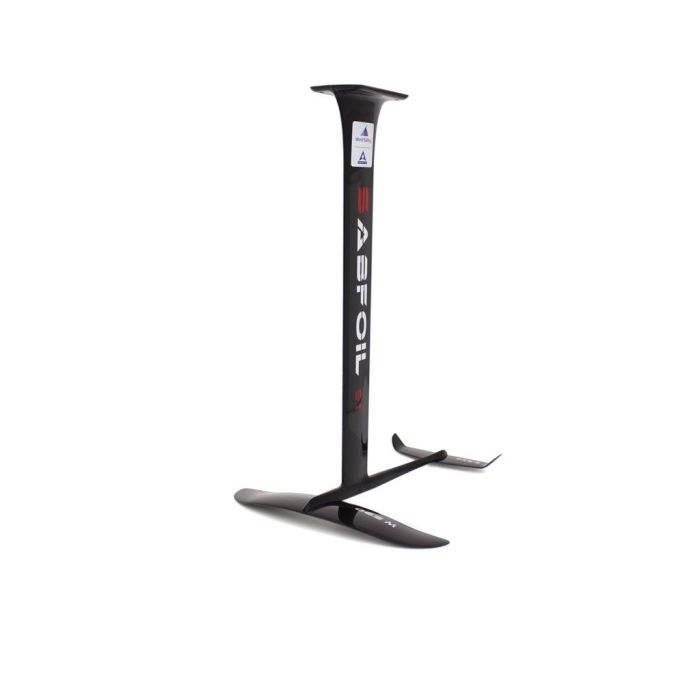

Sabfoil IKA Youth Foil Class 91-590 Complete Kite Foil Kit

The K91590Y is fast and stable, inspires confidence, accelerates in a very smooth way, it's quick to plane and tracks naturally. The W590 wing, with its 650 cm2 front wing surface area permits a low lift speed, while the moderate reverse design will keep the stability you need at high speed. A foil very easy to ride, with a good upwind angle and capable of 30+ knots. The S330 stabilizer increases the pitch control and the lateral stability, which makes this foil ideal also for beginners. No surprise this combo W590/S330 is a best seller for all those riders who love an overall performing foil.

IKA YOUTH FOIL CLASS Registered

.

kit includes

Mast: Sabfoil 91Y - M91Y IKA Youth Foil Class

Front Wing: W590Y Sabfoil 590Y - IKA Youth Foil Class

Stabilizer: S330Y Sabfoil 330Y - IKA Youth Foil Class

Fuselage: FK647 Fuselage 647 - IKA Youth Foil Class

Specs

Mast - Height
910 mm

Front Wing - Span
590 mm

Front Wing - Surface
633 cm2

Front Wing - Root Chord
132 mm

Front Wing - Aspect Ratio
5,2

Stabilizer - Span
330 mm

Stabilizer - Surface
217 cm2

Stabilizer - Root Chord
80 mm

Stabilizer - Aspect Ratio
4,3

Fuselage - Length
647 mm

Board Connection Type
Plate
